Application:
Our COB products can be widely used in store, hotel, house, evening-show, meeting room, exhibitions, jewelry bar, museum, advertisement, etc.
COB Borderless Spotlight
Code : DS-157-S
Power : 10 Watt & 20 Watt .
CCT : 3in1 , Tunable Light 3 in 1 3 Color in 1 Spot light You can change the colors through the power supply.
Light Color: White Light (WH) 6500K – Natural White (NW)4000K – Warm White (WW ) 3000K .
CRI > 95.
Beam Angle : 60.
Power Factor : 0.9 .
Luminous flux : 130 Lm/W.
IP 20
3 Years Warranty.
.

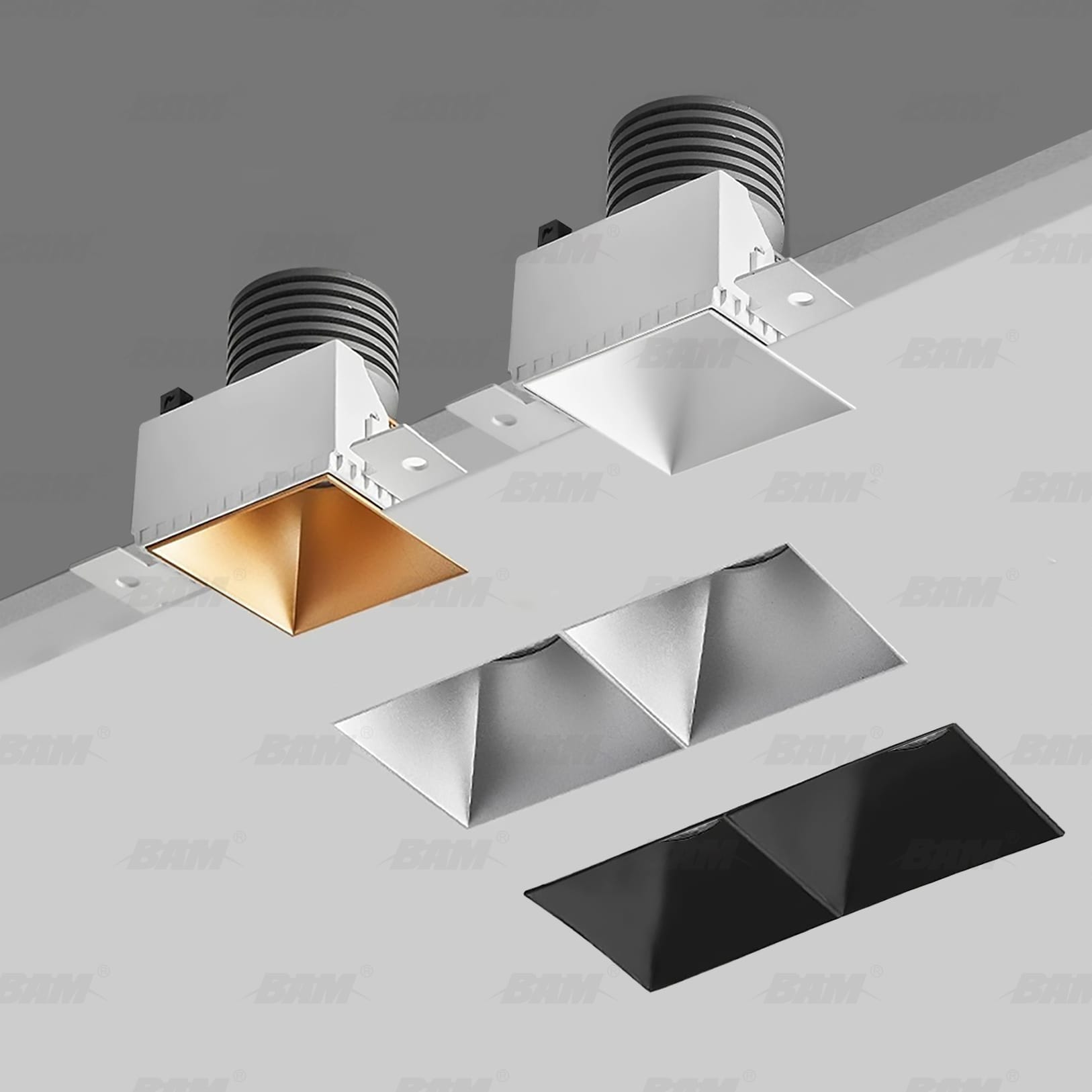

DS–D302
COB Focus light series
Single Head Square LED Down Light
Materials: Aluminum Body+PC Cover
LED Brand: 1pcs , 2pcs , 3pcs CREE COB LED Chip Input:AC85~265V / 50~60Hz
Beam Angle: 24°/60°
Central Head: 60° Adjustable
Lumen:90~100LM/W & CRI>80Ra / >90Ra
Installed Method: Recessed type
Size:
Power : 10 Watt , 15 Watt .
CCT : 3000K – 4000K – 6500K.
CRI > 95.
Hole cut size : 7 cm , 8.6 cm.
Beam Angle : 120.
Power Factor : 0.9 .
Luminous flux : 120 Lm/W.
3Years Warranty.
Light Color: White Light (WH) , Natural White (NW) , Warm White .
Code : MW-B042 BK
Power : 7 Watt
Light Color: Natural White (NW)4000K – Warm White (WW ) 3000K .
CRI > 80.
Beam Angle : 120.
Power Factor : 0.9 .
Luminous flux : 110 Lm/W. 3
IP 20
1 Years Warranty.
Code : DS-B029
Power : 10 Watt .
CCT : 4000K – 6500K.
CRI > 95.
Hole cut size : 7.3 cm.
Beam Angle : 120O.
Power Factor : 0.6 .
Luminous flux : 120 Lm/W. 3
.
Light Color: White Light (WH) , Natural White (NW)
Code : DS-156
Power : 7 Watt , 10 Watt
CCT : 3000K -4000K – 6500K.
CRI > 95.
Hole cut size : 7 Watt = 7 cm / 10 Watt = 10cm.
Beam Angle : 120O.
Power Factor : 0.6 .
Luminous flux : 120 Lm/W.
3Years Warranty.
Light Color: White Light (WH) , Natural White (NW) , Warm White
DS–D302
COB Focus light series
Single Head Square LED Down Light
Materials: Aluminum Body+PC Cover
LED Brand: 1pcs , 2pcs , 3pcs CREE COB LED Chip Input:AC85~265V / 50~60Hz
Beam Angle: 24°/60°
Central Head: 60° Adjustable
Lumen:90~100LM/W & CRI>80Ra / >90Ra
Installed Method: Recessed type
Size:
-Light Color: White Light (WH) , Natural White (NW)
Philips Chips
Mechanical drawing:
Code : MW-B043
Power : 7 Watt .
Light Color: White Light (WH) 6500K – Natural White (NW)4000K
CRI > 80.
Beam Angle : 120.
Power Factor : 0.9 .
Luminous flux : 110 Lm/W. 3
IP 20
1 Years Warranty.
Code : DS-B024
Power : 7 Watt .
CCT : 4000K – 6500K.
CRI > 95.
Hole cut size : 7 cm.
Beam Angle : 120O.
Power Factor : 0.6 .
Luminous flux : 120 Lm/W. 3
.
Light Color: White Light (WH) , Natural White (NW)
Parameter of product:
Size:
.
