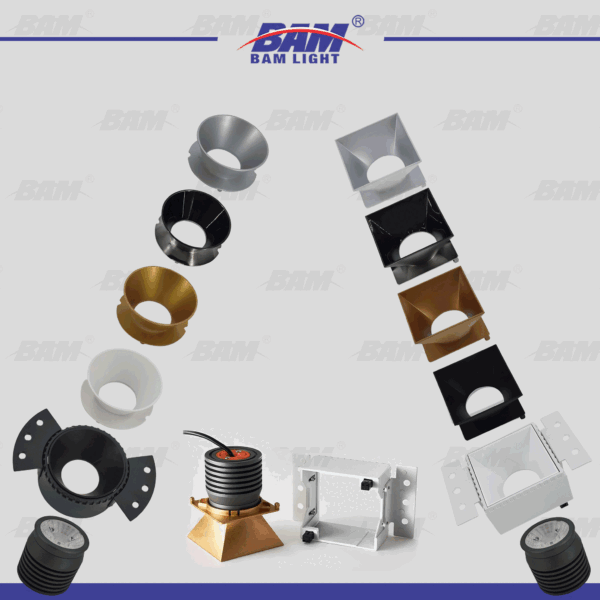

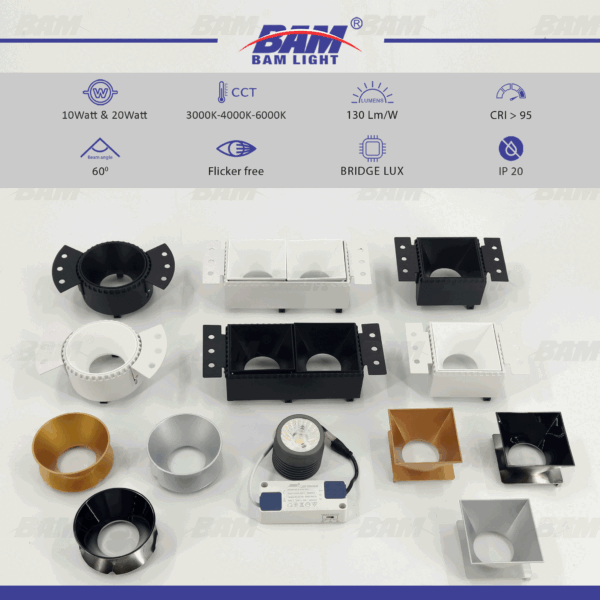

Code : DS-157-S

Power : 10 Watt  & 20 Watt .

CCT : 3in1 , Tunable Light 3 in 1 3 Color in 1 Spot light You can change the colors through the power supply.

Light Color: White Light (WH) 6500K  –  Natural White (NW)4000K   –  Warm White (WW ) 3000K .

CRI > 95.

Beam Angle : 60.

Power Factor : 0.9 .

Luminous flux : 130 Lm/W.

IP 20

3 Years Warranty.

.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 20W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 130-140 Lm/W.
- IP Rating: IP22.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 24W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 130-140 Lm/W.
- IP Rating: IP22.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 36W/m.
- LEDs per/m: 360 LED.
- Voltage: 24V-12V.
- Cutting Length: 50mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 130-140 Lm/W.
- IP Rating: IP22.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 10W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 50mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 110 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 10W/m.
- LEDs per/m: 360 LED.
- Voltage: 24V-12V.
- Cutting Length: 50mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 110 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 10W/m.
- LEDs per/m: 120 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 130-140 Lm/W.
- IP Rating: IP65.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

.

.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 18W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 130-140 Lm/W.
- IP Rating: IP65.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 15W/m.
- LEDs per/m: 120 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 100-120 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 20W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 110 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

.

.

Product information:


- Strip Size (Length Per Roll): 100 meters.
- LED Chip: 2835 SMD.
- Power : 15W/m.
- LEDs per/m: 120 LED.
- Voltage: 24V-12V.
- Cutting Length: 50mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 100-120 Lm/W.
- IP Rating: IP65.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

Product information:


- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 20W/m.
- LEDs per/m: 240 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 110 Lm/W.
- IP Rating: IP65.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

.

.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 10W/m.
- LEDs per/m: 360 LED.
- Voltage: 24V-12V.
- Cutting Length: 25mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 100 - 120 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

Product information:

- Strip Size (Length Per Roll): 10 meters.
- LED Chip: 2835 SMD.
- Power : 10W/m.
- LEDs per/m: 360 LED.
- Voltage: 24V-12V.
- Cutting Length: 125mm.
- Color Temp : 3000K - 4000K - 6000K .
- Luminous flux : 100 - 120 Lm/W.
- IP Rating: IP20.
- Beam angle : 120 °.
- Power Factor : 0.6 .
- Working Temperature: -25° to +60°.

 DS​–D302​

COB  Focus light series

Single Head Square LED Down Light
Materials: Aluminum Body+PC Cover
LED Brand: 1pcs , 2pcs , 3pcs CREE COB LED Chip Input:AC85~265V / 50~60Hz
Beam Angle: 24°/60°
Central Head: 60° Adjustable
Lumen:90~100LM/W & CRI>80Ra / >90Ra
Installed Method: Recessed type

Size:
